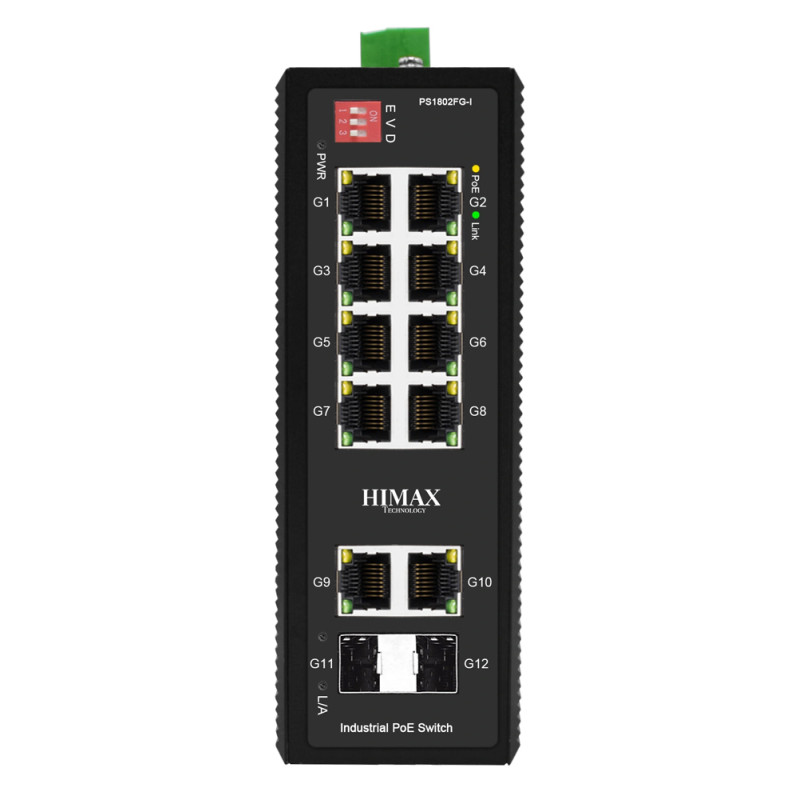

HIMAX industrial PoE switch PS1802FG-I, 8x GE PoE/2x GE/2x GF SFP θύρες, έως 1000Mbps

HIMAX industrial PoE switch PS1802FG-I, 8x GE PoE/2x GE/2x GF SFP θύρες, έως 1000Mbps

Το switch της HIMAX σας επιτρέπει να επεκτείνετε το ενσύρματο δίκτυο σας με 8x Gigabit PoE, 2x Gigabit και 2x Gigabit SFP θύρες δικτύου.
Υποστηρίζει ταχύτητες δικτύου έως 1000Mbps και τροφοδοσία PoE με μέγιστη ισχύ 30W ανά θύρα.
Είναι ιδανικό για χρήση με συστήματα ασφαλείας, συναγερμούς, κάμερες κ.λπ.

Σημεία ενδιαφέροντος προϊόντος
-10/100/1000Mbps ταχύτητα δικτύου
-τροφοδοσία PoE με μέγιστη ισχύ 30W
-LED ενδείξεις λειτουργίας
-ανθεκτικό μεταλλικό σώμα

Τεχνικά χαρακτηριστικά
-Interfaces:
8x 10/100/1000Base-T PoE ports (Data/Power)
2x 10/100/1000Base-T RJ45 ports (Data)
2x 100/1000Base-X SFP slot ports (Data)
2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal)
-PoE Port: Port 1-8 supports POE @ IEEE802.3af/at
-Network Protocol: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-T/TX, IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE-X, IEEE802.3u 100BASE-FX, IEEE802.3x.
-PoE Standard: IEEE802.3af/at
-Feature:
With the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters
V: Turn on, 1-4 Port support each port Isolation & VLAN
D: Turn on, 1-4 Port support AI-PoE Network self-healing mode(PoE Watchdog function), Automatic solve the camera problem & reduce after-sale
-SFP Port Characteristic: Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module.
-Forwarding Mode: Store and Forward
-Switching Capacity: 24Gbps (Non-blocking)
-Forwarding Rate @64byte: 17.856Mpps
-MAC: 8K
-Buffer Memory: 4M
-Jumbo Frame: 10K
-Twisted Pair Transmission: 10BASE-T: Cat3,4,5 UTP (≤100 meter), 100BASE-TX: Cat5 or later UTP (≤100 meter), 1000BASE-T: Cat5e or later UTP (≤100 meter)
-Optical Cable: Multimode: 850nm 0 ~ 500M, 1310nm 0~2KM / Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
-Power Supply Pin: Default 1/2 (+), 3/6 (-)
-Working Voltage: 48-57VDC; 5 Pin industrial Phoenix terminal, support anti-reverse protection.
-Max Power Per Port: 30W; IEEE802.3af/at
-Total PWR/Input Voltage: 120W (48-57VDC)
-Power Consumption: Standby: <3W; Full load: <120W
-LED Indicator: Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/(Green), 9(Link/Act)/(Green), Speed/(Orange); POE indicator: PoE (Orange)
-Power Supply: No, optional 48V/120W or 48V/240W industrial power supply
-IP protection level: IP40
-Lightning protection: 6KV 8/20us
-Operation TEMP/Humidity: -40°C ~ +75 °C; 5%~90% RH Non condensing
-Installation: Rail-type
-Dimension: 165 x 145 x 54mm
